ICP-1 BUF AUTO Filler 3ml to 1.3 Litre
ICP-1 BUF AUTO Filler 3ml to 1.3 Litre - Image 2
ICP-1 BUF AUTO Filler 3ml to 1.3 Litre - Image 3
ICP-1 BUF AUTO Filler 3ml to 1.3 Litre - Image 4
ICP-1 BUF AUTO Filler 3ml to 1.3 Litre - Image 5
ICP-1 BUF AUTO Filler 3ml to 1.3 Litre - Image 6

ICP-1 BUF AUTO Filler 3ml to 1.3 Litre

Enquire Now

A high-quality Australian, heavy-duty filling machine.

Capable of filling volumes from 3ml – 1.3 litre.

Can be used to fill low viscous fluids through to thick creams.

Includes Bottom Up Fill (BUF) attachment, container gating & whisker.

Category:

ICP-1 BUF AUTO – Automatic inline liquid filler.

The ICP-1-BUF AUTO filler is a robust, Australian-designed machine engineered for durability and precision. Built without compromise, it prioritizes quality and reliability, ensuring long-lasting performance across a range of industries, from food production to pharmaceuticals.

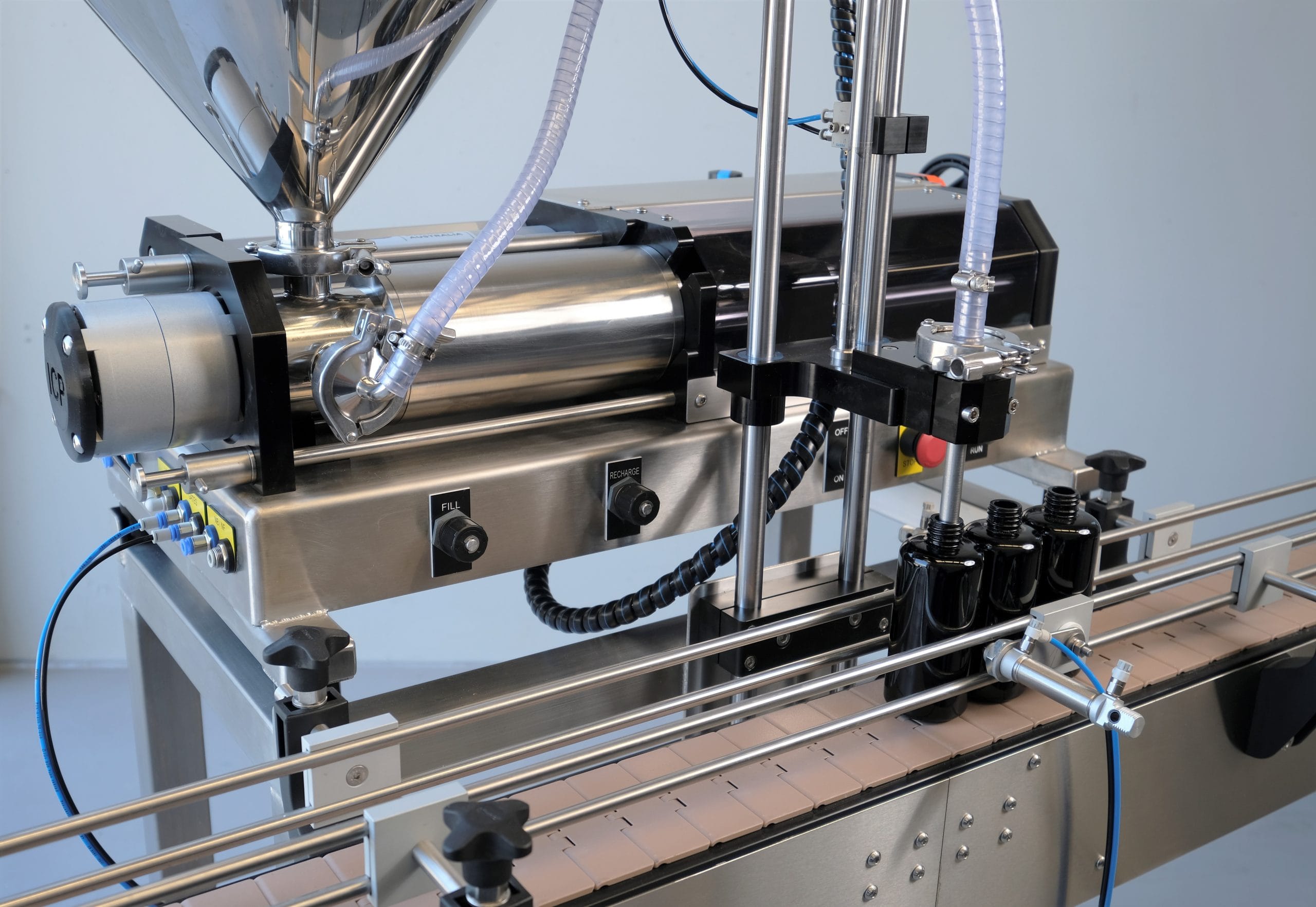

Featuring the Bottom-Up Fill (BUF) system, this machine is ideal for foaming products and production line operations. The nozzle descends into the container during filling and ascends as it fills, ensuring a smooth process. The ICP-1-BUF handles a wide range of wet products, including water, oils, pasta sauces, pastes, shampoos, conditioners, and thick creams. It can be hopper-fed for thicker products or connected via an inlet hose to draw free-flowing materials from vessels or IBCs.

With the ability to handle fill sizes from 3 mL to 1.3 litres (using interchangeable cylinders), the ICP-1-BUF AUTO ensures precise volume control with its millimetre-accurate digital scale, eliminating the need for recalibration. Over-engineered to last, this machine is built from high-grade 316 stainless steel and PETP, making it suitable for food, industrial, and pharmaceutical applications.

All contact parts are designed for easy removal and cleaning without tools, ensuring minimal downtime. A range of nozzle attachments is available, including positive shut-off (PSO), plug and suck-back nozzles, and pinch valve nozzles, for customized filling solutions. The ICP-1-BUF is also capable of hot-filling products up to 95°C, with an optional spool valve setup for products containing suspended particles.

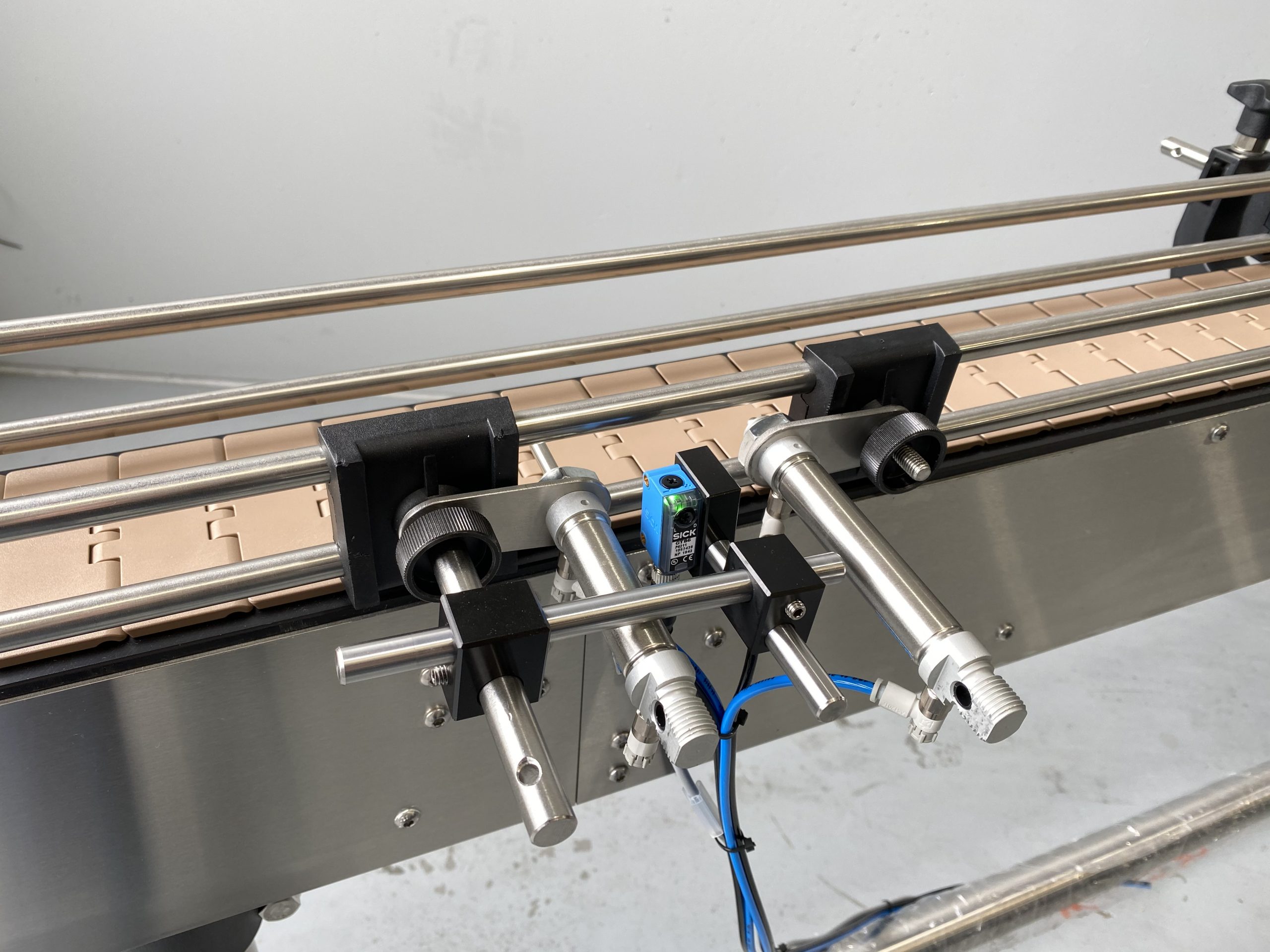

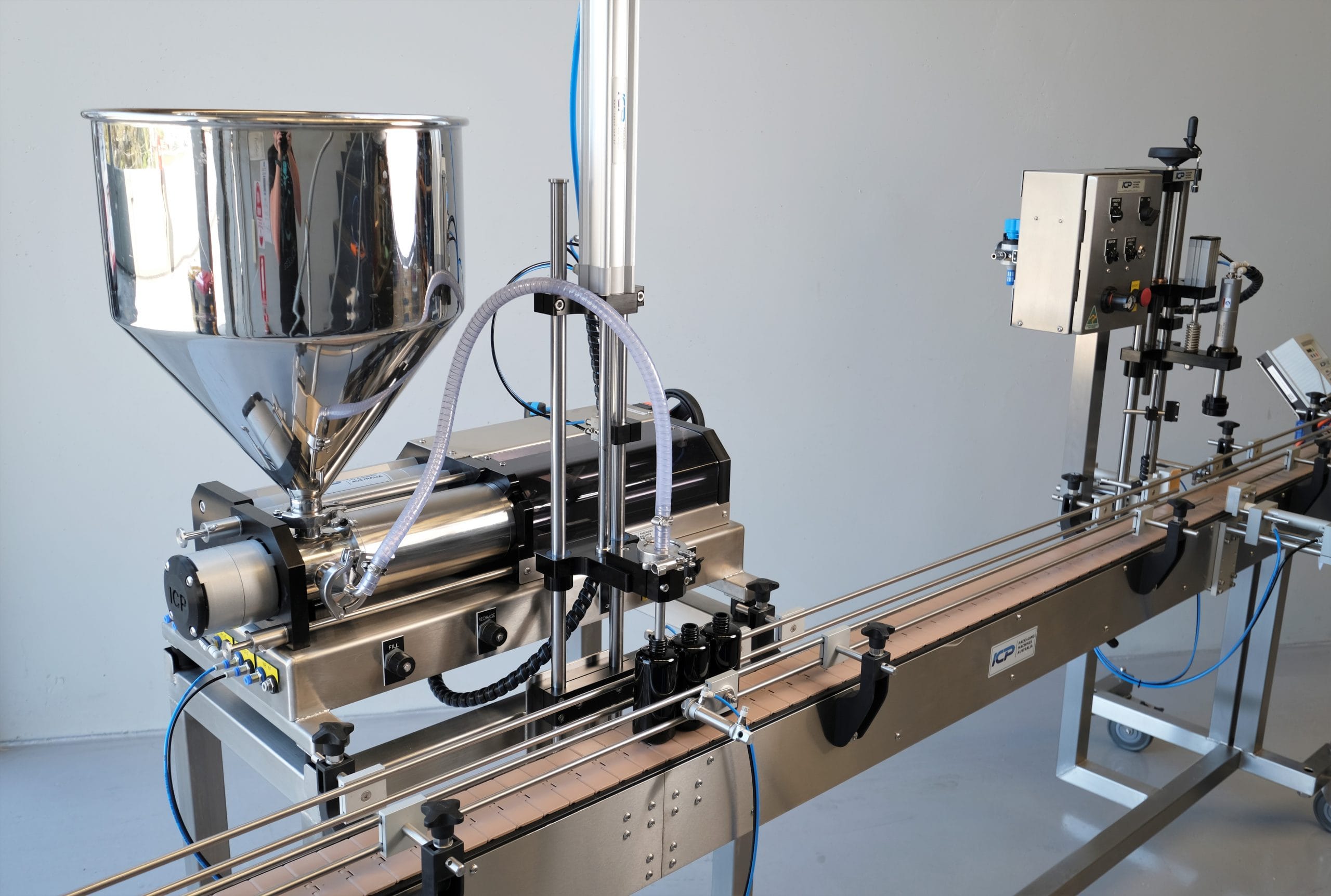

For fully automated operation, the ICP-1-BUF-AUTO version comes equipped with a gate delay function, gates, and a whisker for slat conveyor setups. Once installed, it automates the entire process—catching the container, lowering the nozzle for filling, raising the nozzle as it fills, and seamlessly moving on to the next container.

This versatile and over-engineered machine is designed to meet the highest standards of durability, precision, and ease of use, making it a top choice for businesses in need of a reliable, high-quality filling solution.

  • Bottom Up Fill (BUF) attachment.
  • All 316 stainless and food grade contact parts.
  • Fast toolless removal of contact parts for cleaning.
  • Fully pneumatic operation – flameproof.
  • Suitable for warm water washdown.
  • High quality pneumatics from Festo and SMC.
  • 304 Grade stainless steel base and cladding for bench or trolley mounting.
  • Cylinders are infinitely adjustable between 10% and 100% of their rated volumes.
  • Easy operation and volume adjustment by a mm accurate digital counter. Allows for precise return to previous fill volume without the need to re-calibrate.
  • Highly accurate filling ± 0.5% or better.
  • Fully adjustable fill and recharge speed valve controls.
  • Footswitch included for hands-free one-shot cycling.

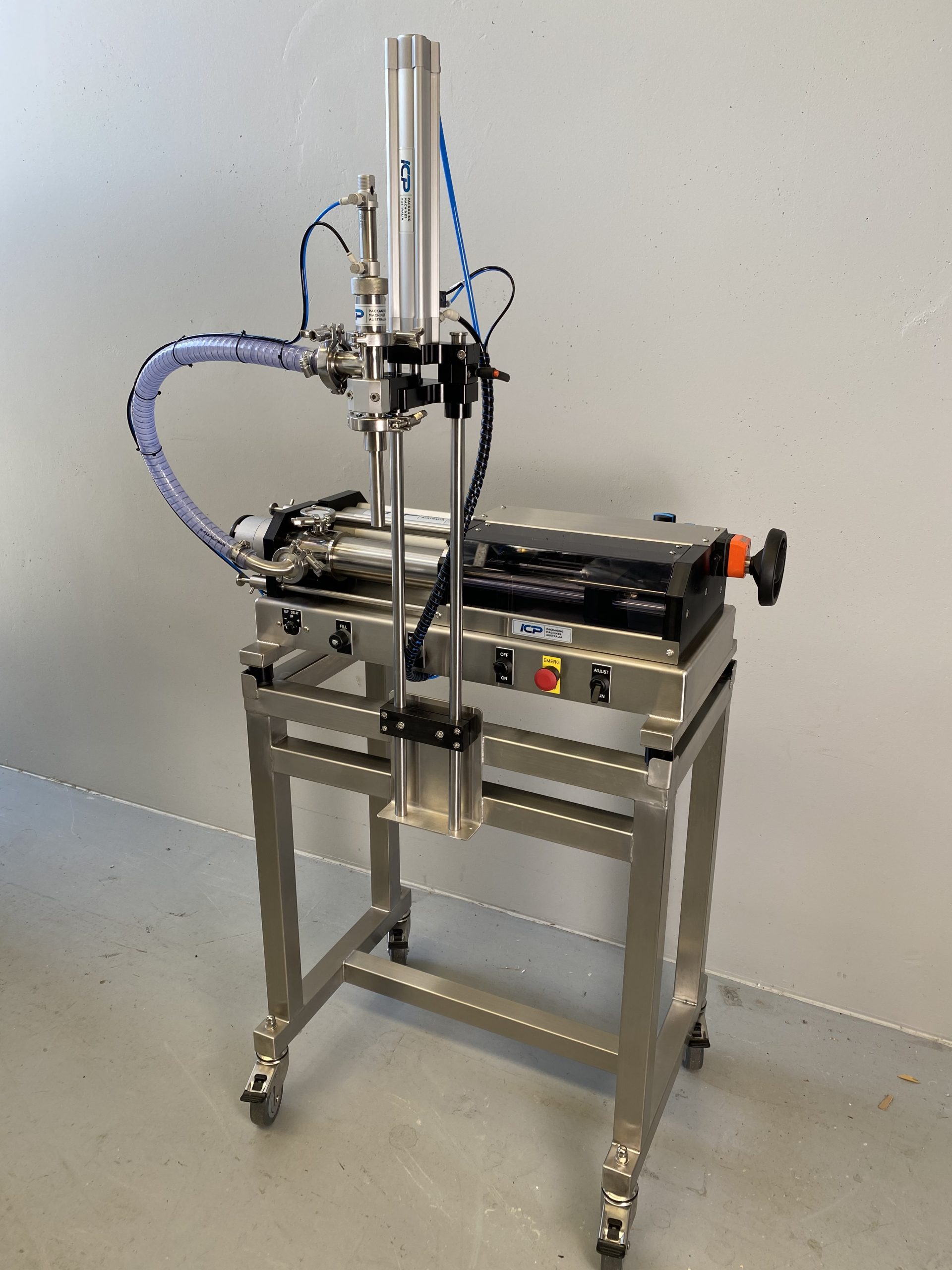

  • Inc Auto trolley on casters.

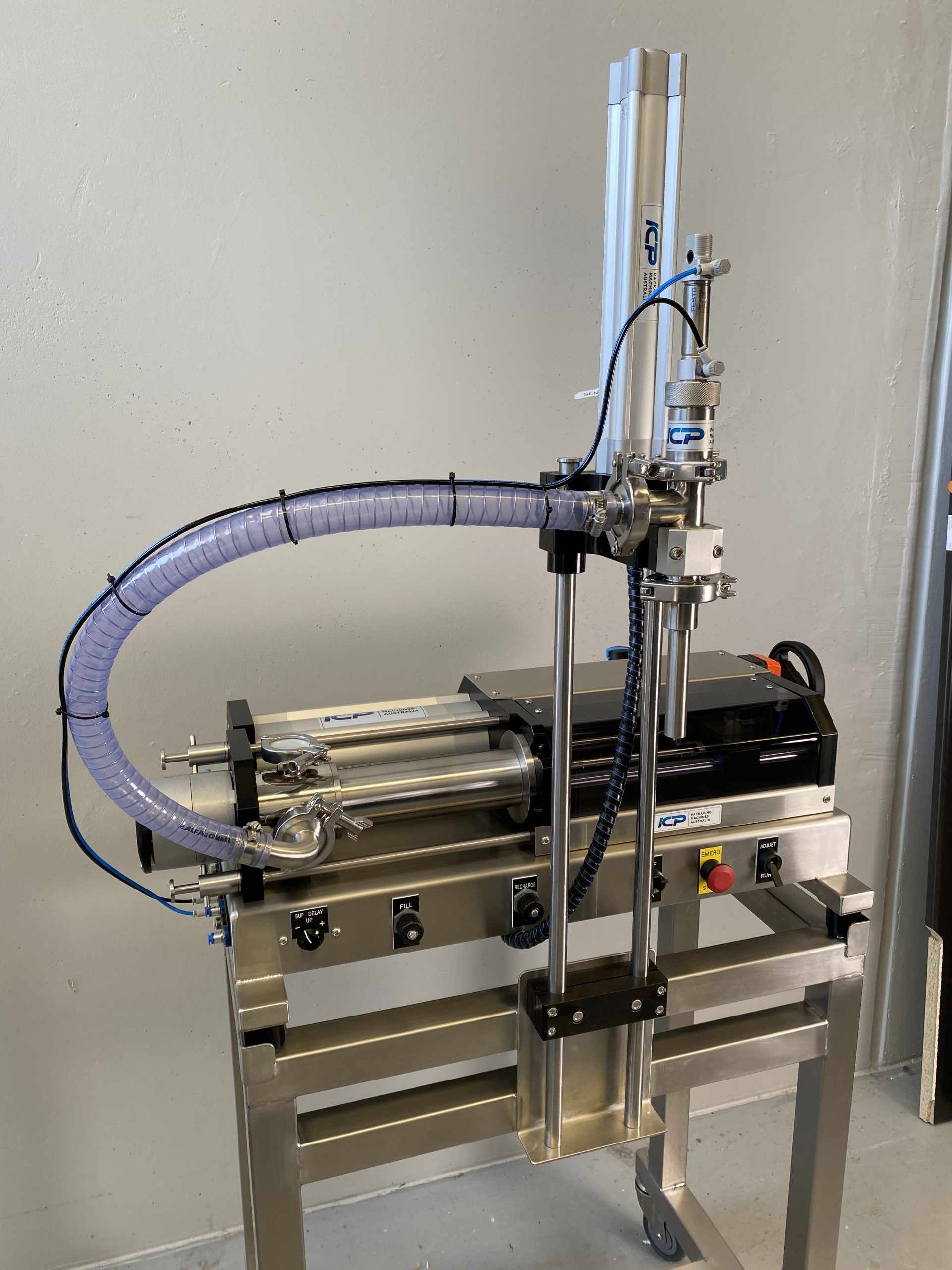

  • BUF trolley with gates and whisker for automatic operation.
  • Dimensions w x d x h (mm) 940 x 450 x 1300 (inc handwheel) includes trolley and BUF.
  • Weight Approx. 62kg.
  • Air Pressure Required (Kpa) 600 (87psi).
  • Fill range of 2.5ml – 1.25 litre.
  • The product cylinders have maximum capacities of 30, 80, 140, 320, 520, and 1300ml. Cylinders are infinitely adjustable between 10% and 100% of their rated volumes.
  • The product piston is fitted with an O-ring energised Teflon/HDPE glide ring seal.
  • Quick connect tri-clover product inlet/outlet fittings.
  • Rotary valve system or optional spool valve for use with hot filling products above 95deg C.
  • Individually adjustable fill and recharge speed.
  • Festo DVRS40 rotary actuator and pneumatic cylinder.
  • Fill rate of 10-15 per min (user and product dependant).
  • Fill accuracy ± 0.5% or better.

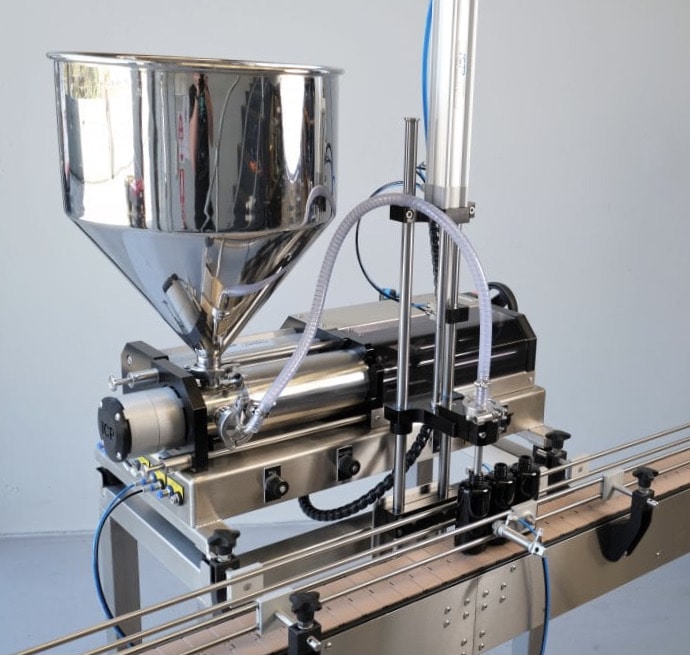

  • Available with a range of 316 stainless hoppers from 12L – 48L.
  • Various inlet connections from 1″- 2″ inch.
  • Range of standard nozzles from 5 – 25mm.
  • Range of optional powered nozzles from positive shutoff (PSO) nozzle, plug & suck-back nozzle.
  • Spool Valve for hot-filling products up to 95 deg C (i.e. hot sauces).
  • Additional sizes of interchangeable product cylinder and piston assemblies 30,80, 140, 320, 520, and 1300ml.
