ICP-1 Filler 3ml to 1.3 Litre

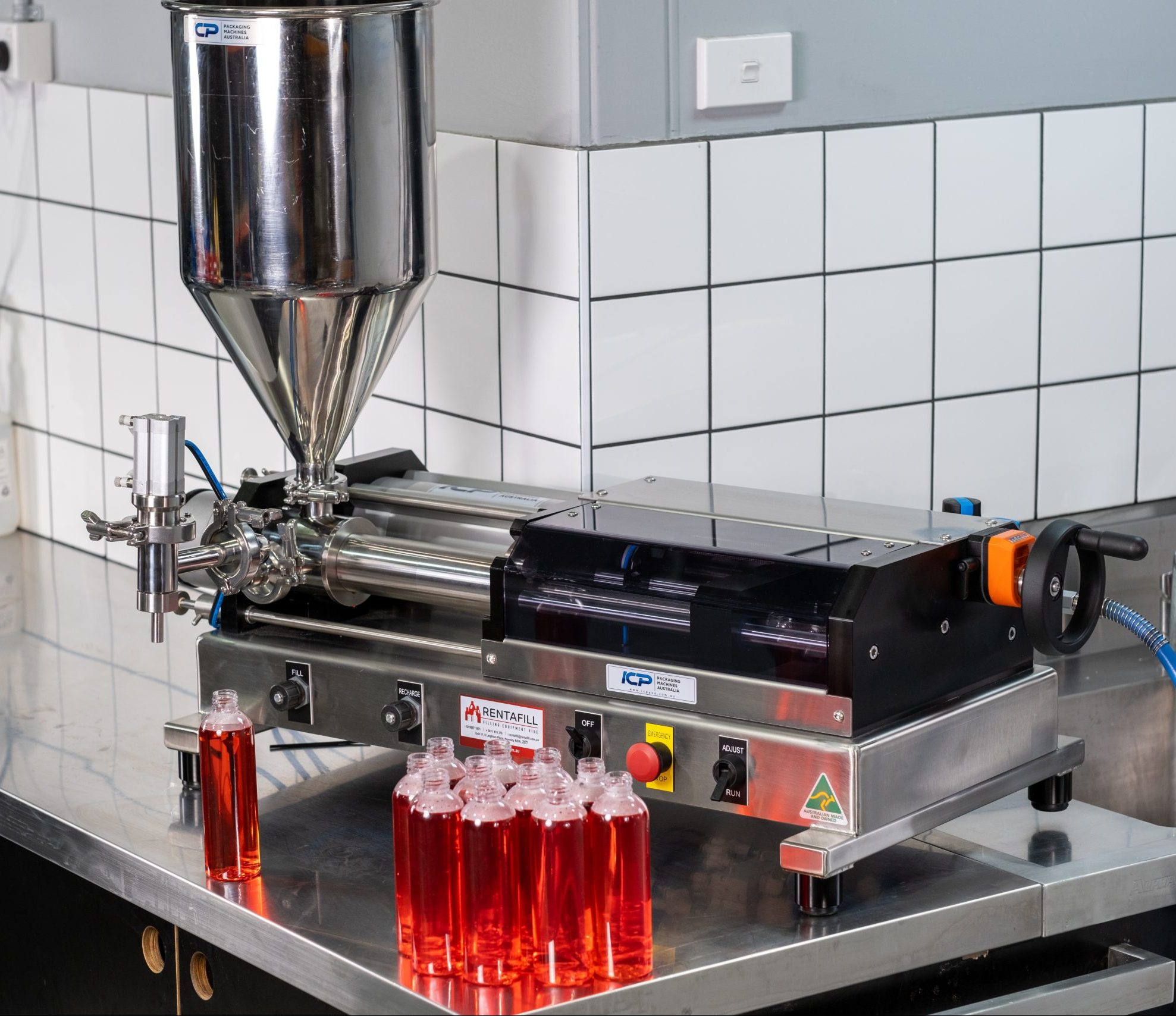

ICP-1 Benchtop Liquid Filling Machine

The ICP-1 filler is a robust, Australian-designed machine, crafted to be a reliable and long-lasting solution for the hire industry. As the updated replacement for the Rentafill RV-1 and Asset AV-3 volumetric fillers, the ICP-1 reflects a focus on quality and durability, built to handle years of use.

Engineered to manage a wide range of wet products—including water, oils, pasta sauces, thick creams, shampoos, and conditioners—this versatile machine can be hopper-fed for thicker materials or fitted with an inlet hose for free-flowing products drawn directly from holding vessels or IBCs. It’s also capable of hot filling at temperatures up to 60°C, with an optional spool valve setup for handling products like hot sauces at temperatures as high as 95°C.

The ICP-1 offers flexibility with fill sizes ranging from 3 mL to 1.3 litres and includes interchangeable cylinders for easy volume adjustment. The machine features a millimetre-accurate digital counter, which allows users to recall previous settings without recalibration, enhancing efficiency and precision.

Designed for easy maintenance, all contact parts can be removed without tools, ensuring straightforward cleaning. Various nozzle attachments, including positive shut-off (PSO) nozzles and suck-back options, are available to meet specific filling requirements. The ICP-1 can also be paired with a conveyor system, enabling single-cylinder automatic operation when needed.

This over-engineered machine prioritizes long-term performance and reliability, making it an excellent choice for businesses needing a durable, versatile, and easy-to-maintain filling solution.

All 316 stainless and food grade contact parts.
Fast tool-less removal of contact parts for cleaning.
Fully pneumatic operation – flameproof.
Suitable for warm water washdown.
High-quality pneumatics from Festo and SMC.
304 Grade stainless steel base and cladding for bench or trolley mounting.
Cylinders are infinitely adjustable between 10% and 100% of their rated volumes.

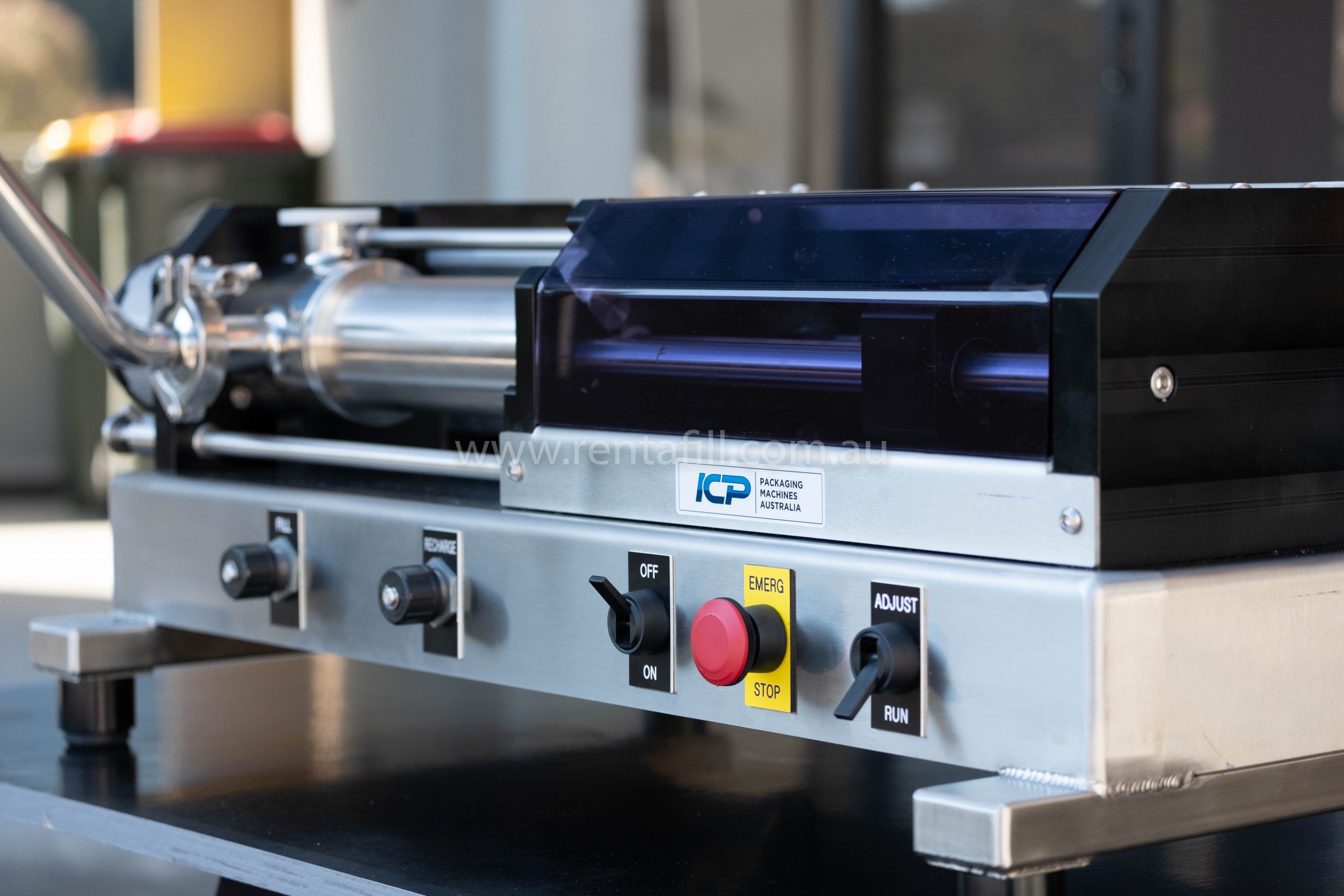

Easy operation and volume adjustment by a millimetre-accurate digital counter. Allows for precise return to previous fill volume without the need to re-calibrate.
Highly accurate filling ± 0.5% or better.
Fully adjustable fill and recharge speed valve controls.
Footswitch included for hands-free one-shot cycling.

Dimensions w x d x h (mm) 940 x 450 x 300 (inc handwheel).
Weight Approx. 55kg.
Air Pressure Required (Kpa) 600 (87psi).
Fill range of 2.5ml – 1.25 litre.

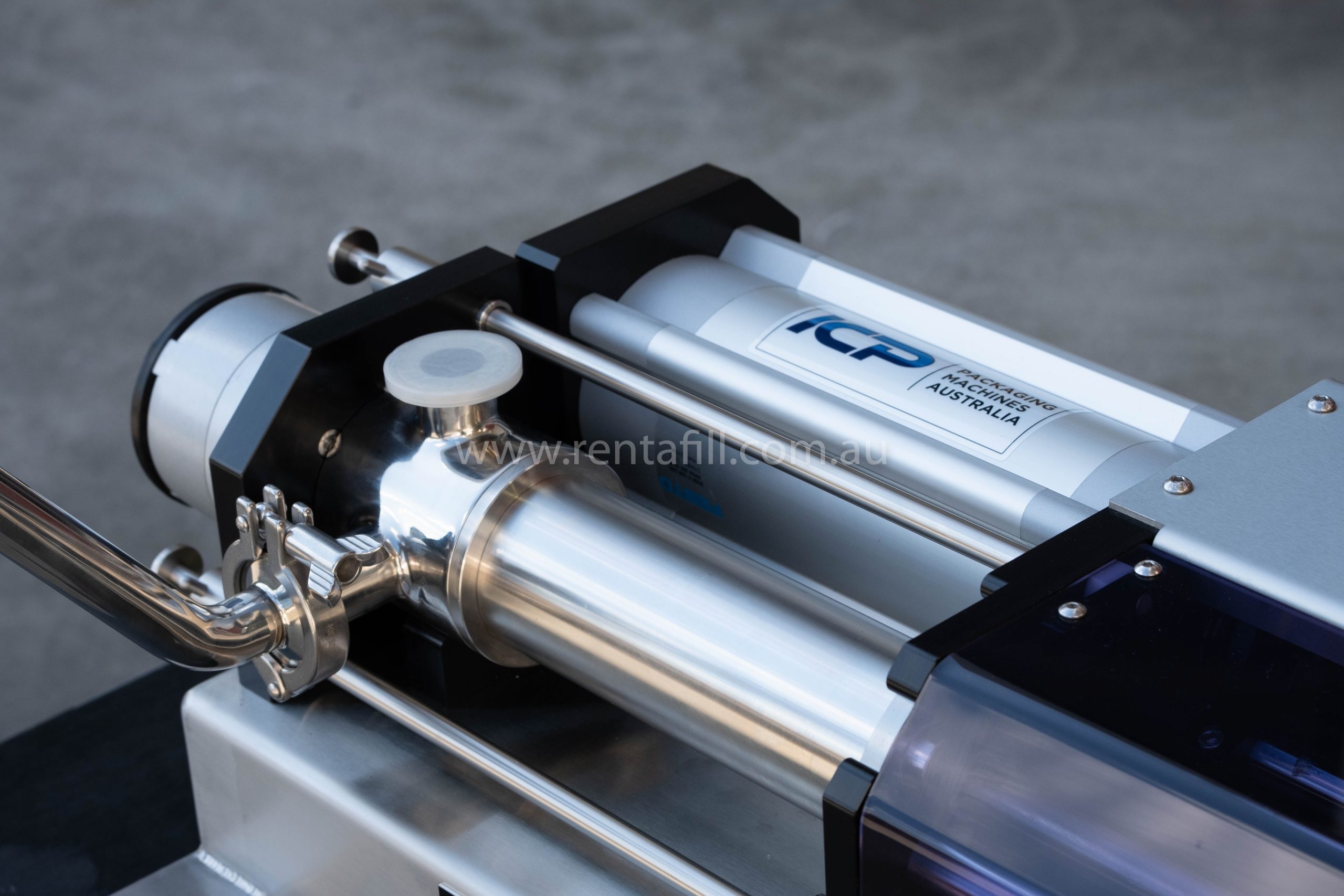

The product cylinders have maximum capacities of 30, 80, 140, 320, 520, and 1300ml. The cylinders are infinitely adjustable between 10% and 100% of their rated volumes.
The product piston is fitted with an O-ring energised Teflon/HDPE glide ring seal.
Quick connect tri-clover product inlet/outlet fittings.
A rotary valve system or optional spool valve is used with hot filling products up to 95degC.
Individually adjustable fill and recharge speed.

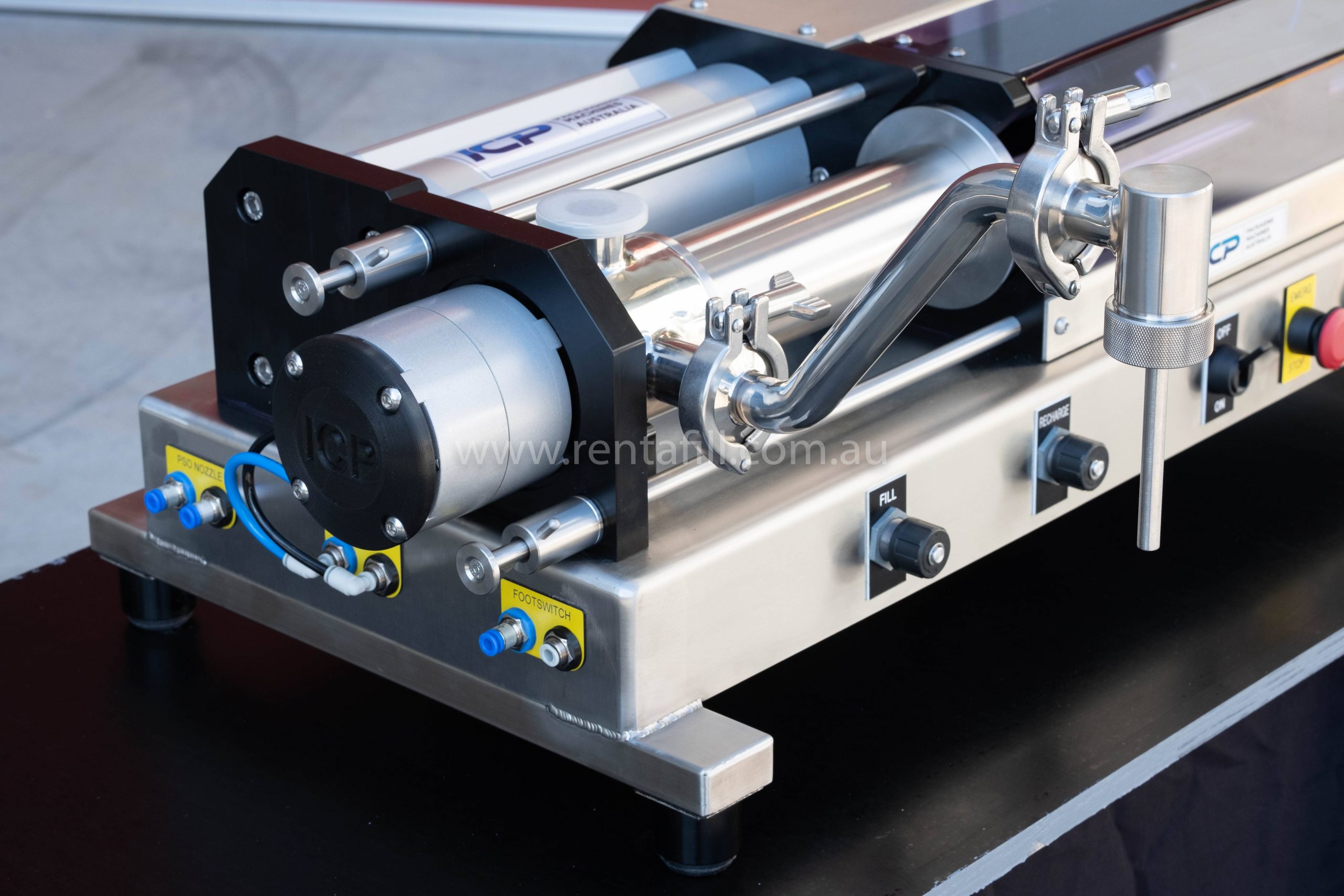

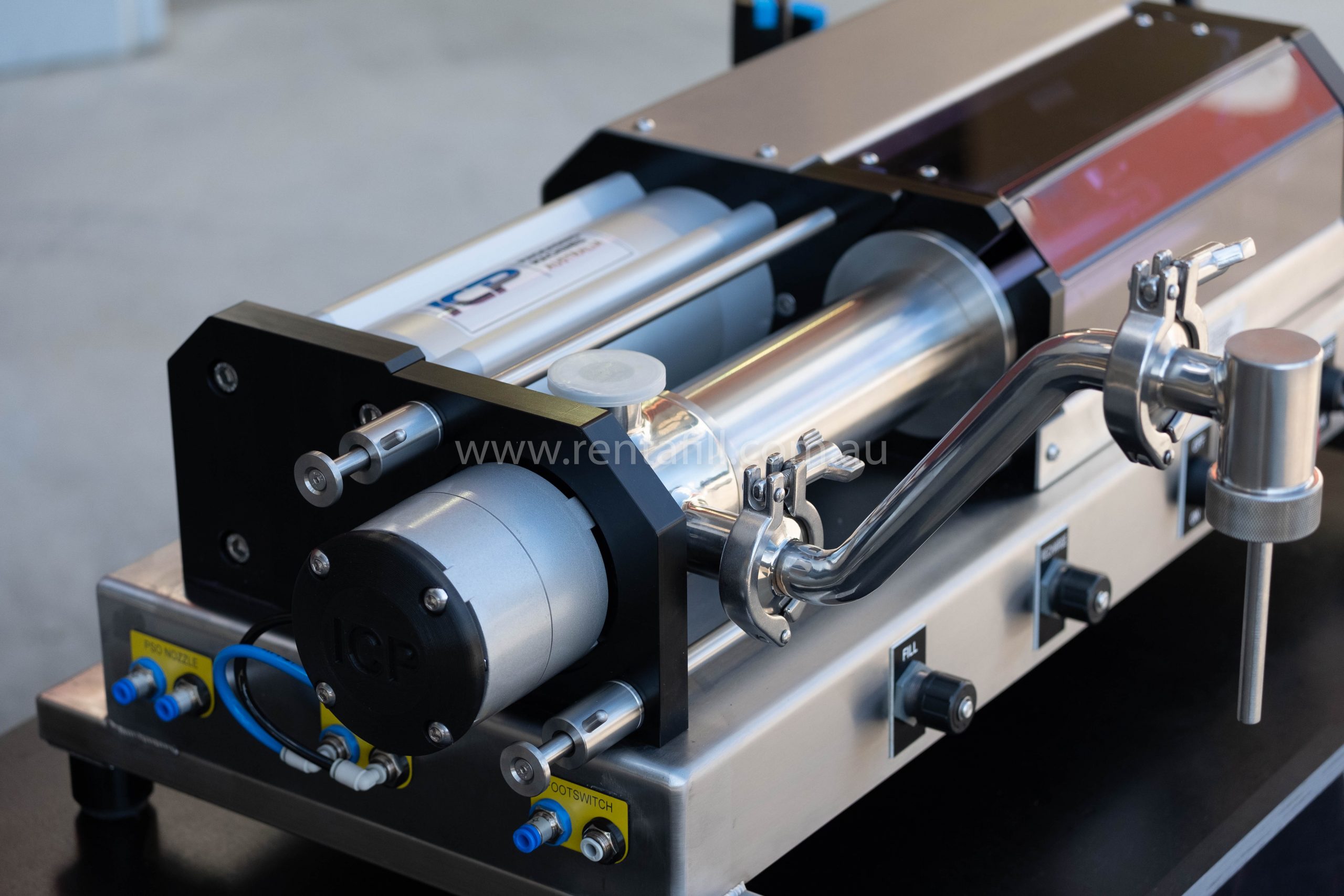

Festo DVRS40 rotary actuator and pneumatic cylinder.
Fill rate of 10-15 per minute (user and product dependent).
Fill accuracy ± 0.5% or better.
Pneumatic Footswitch for hands-free operation.

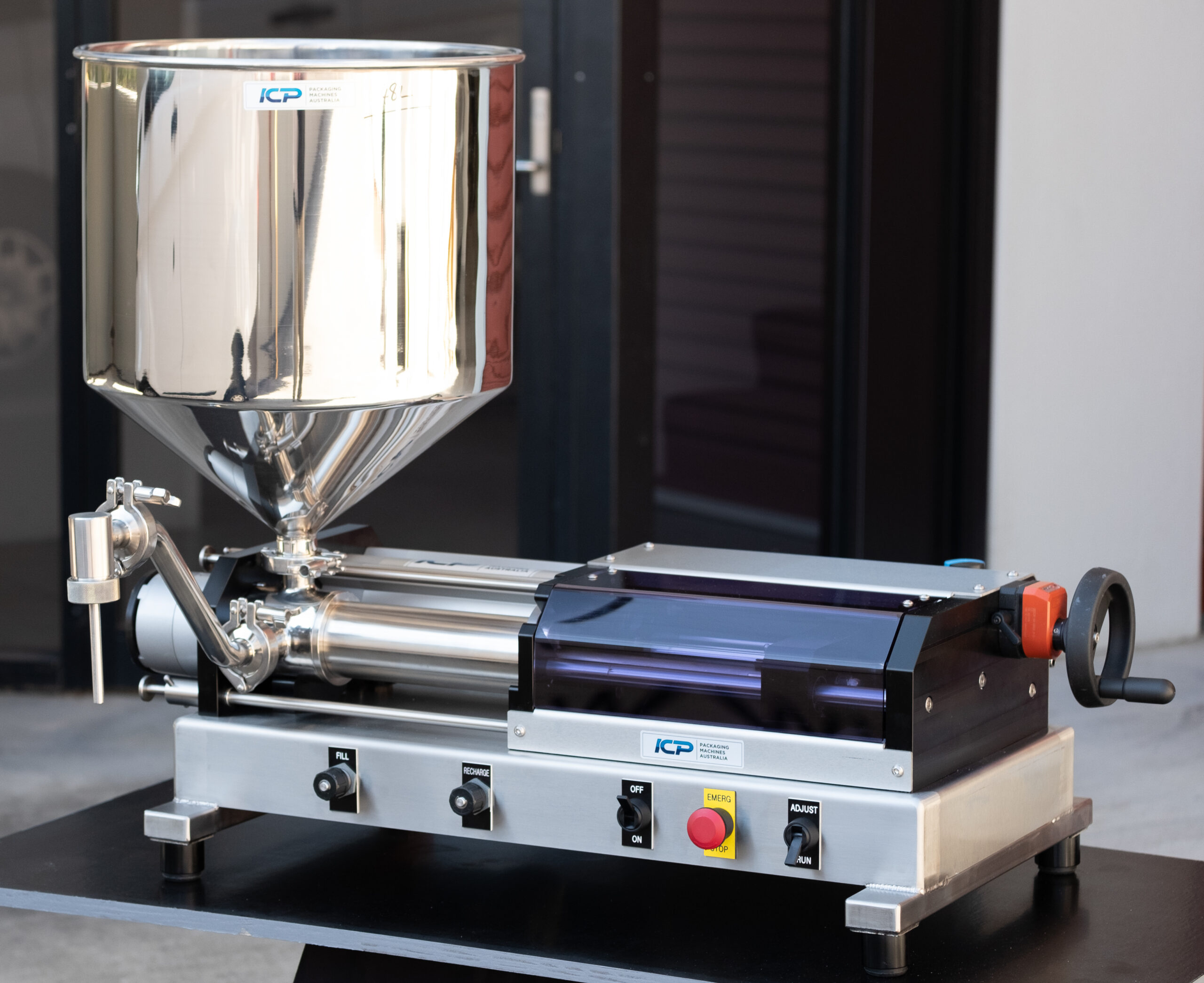

Available with a range of 316 stainless hoppers from 12L – 48L.
Various inlet connections from 1″- 2″ inch.
Range of standard nozzles from 5 – 25mm.

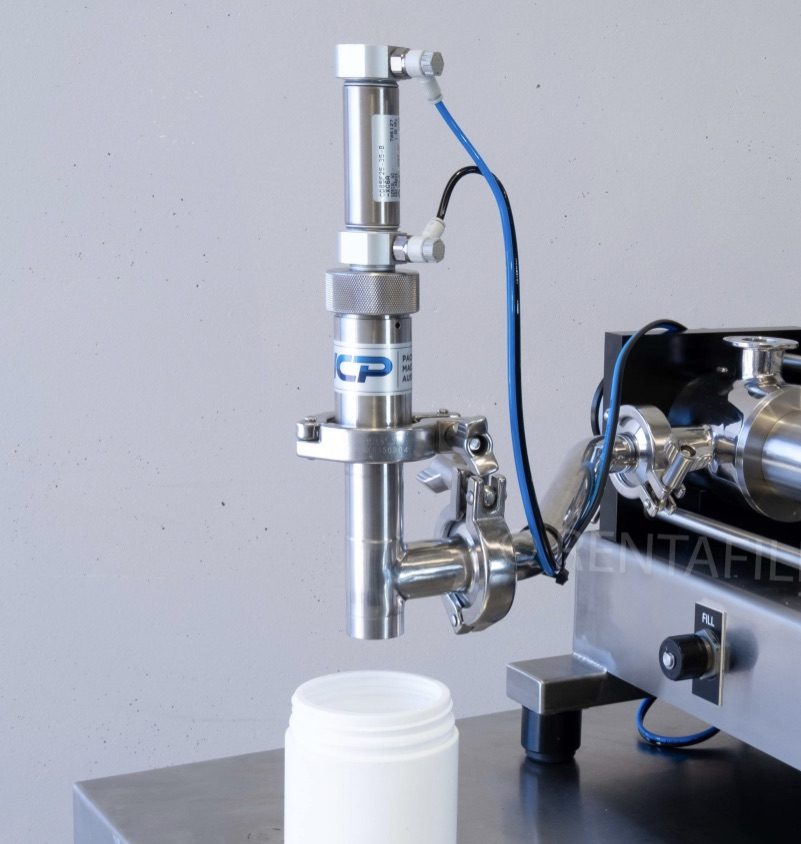

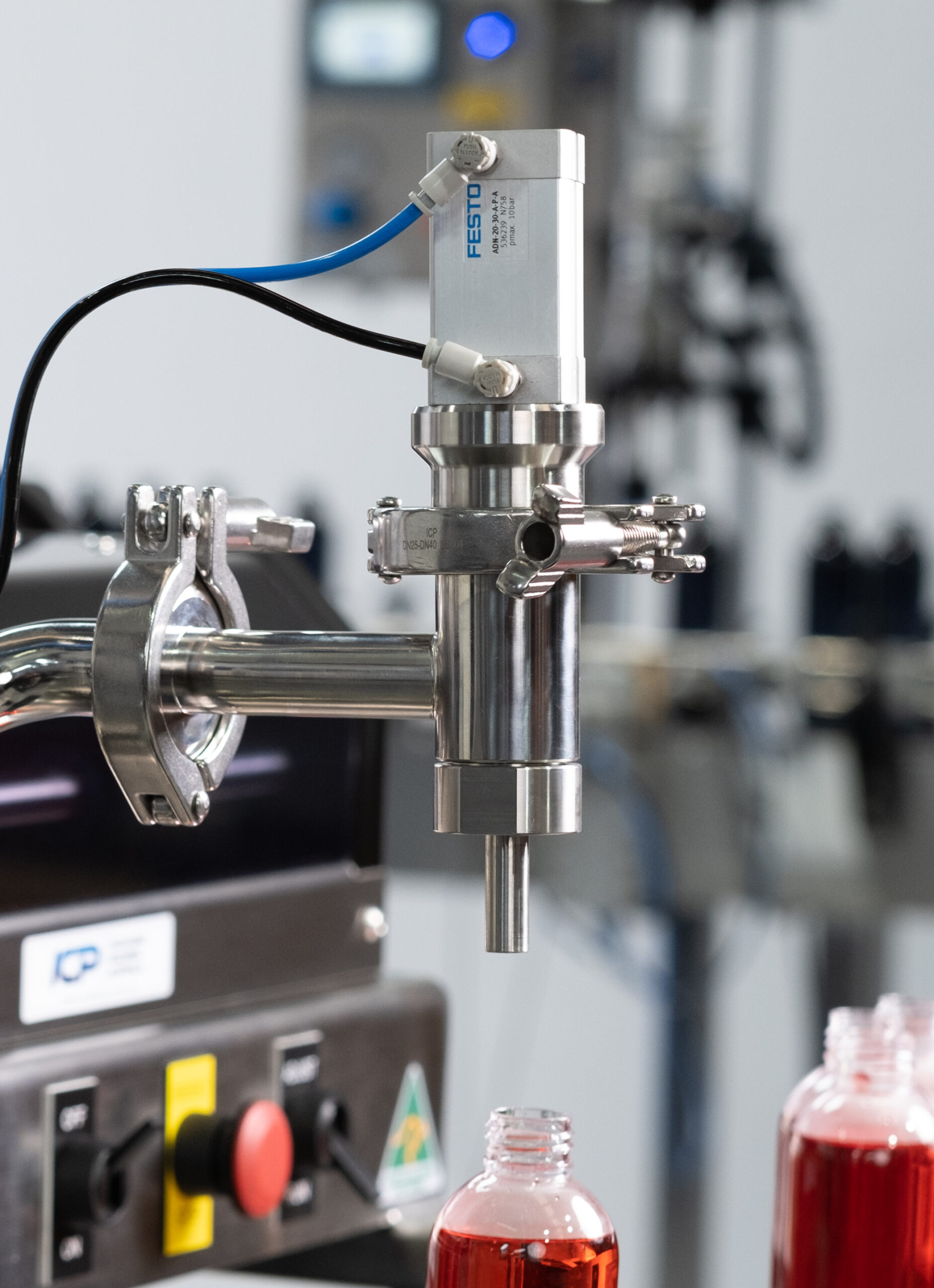

Range of optional powered nozzles from positive shutoff (PSO) nozzle, plug & suck-back nozzles.
Spool Valve for hot-filling products above 60 deg C (i.e., hot sauces).
Additional sizes of interchangeable product cylinder and piston assemblies include 30,80, 140, 320, 520, and 1300 ml.
Stainless steel trolley with lockable castor wheels.
BUF trolley with gates and whisker for automatic operation.
