ICP-5 Filler 500ml to 5 Litre

Enquire Now

ICP-5 is a heavy-duty Australian built volumetric liquid filling machine suitable for filling liquids, paste or creams from 500ml – 5 litres. It includes Bottom Up Fill (BUF) and PSO nozzle as standard.

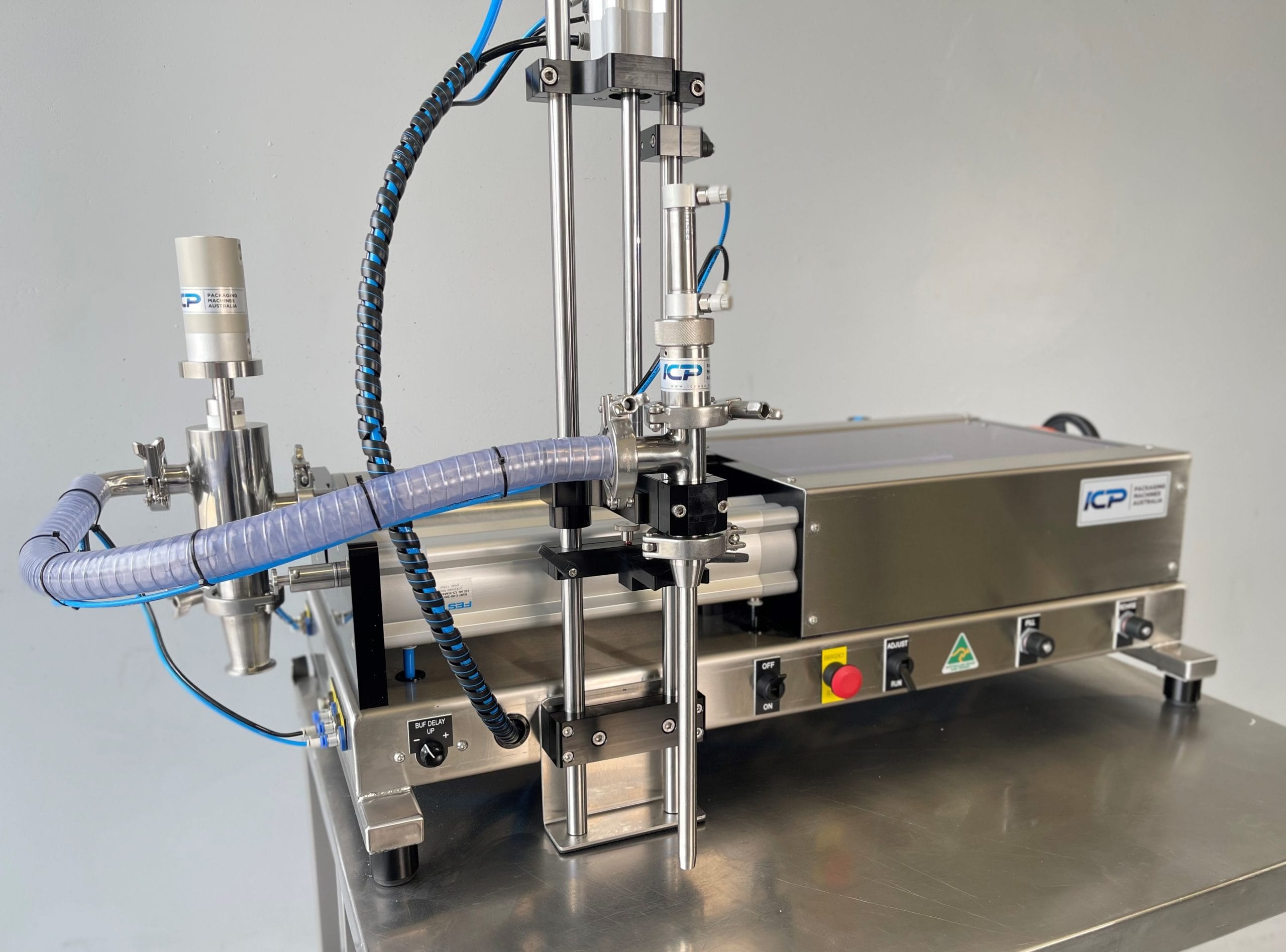

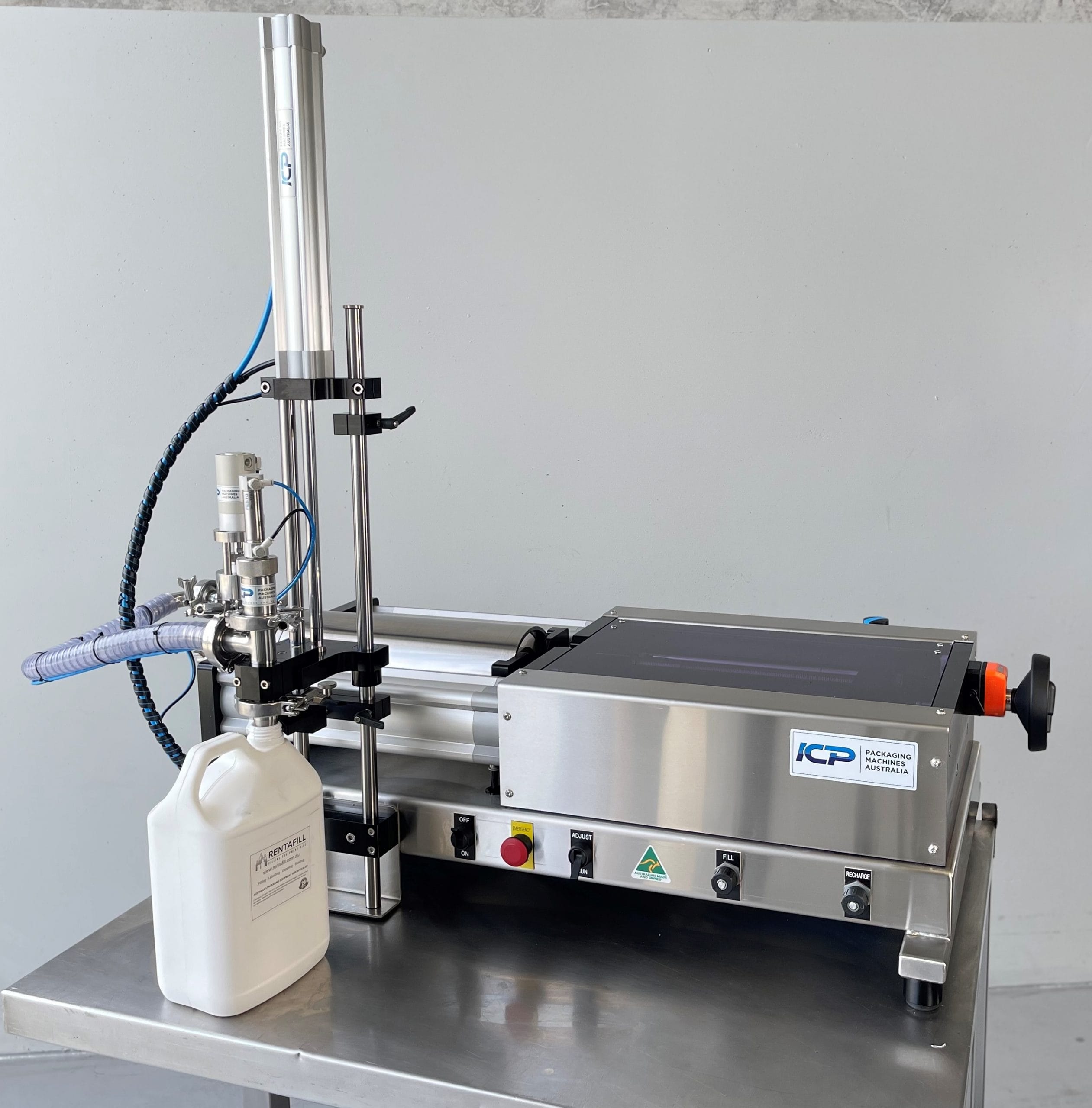

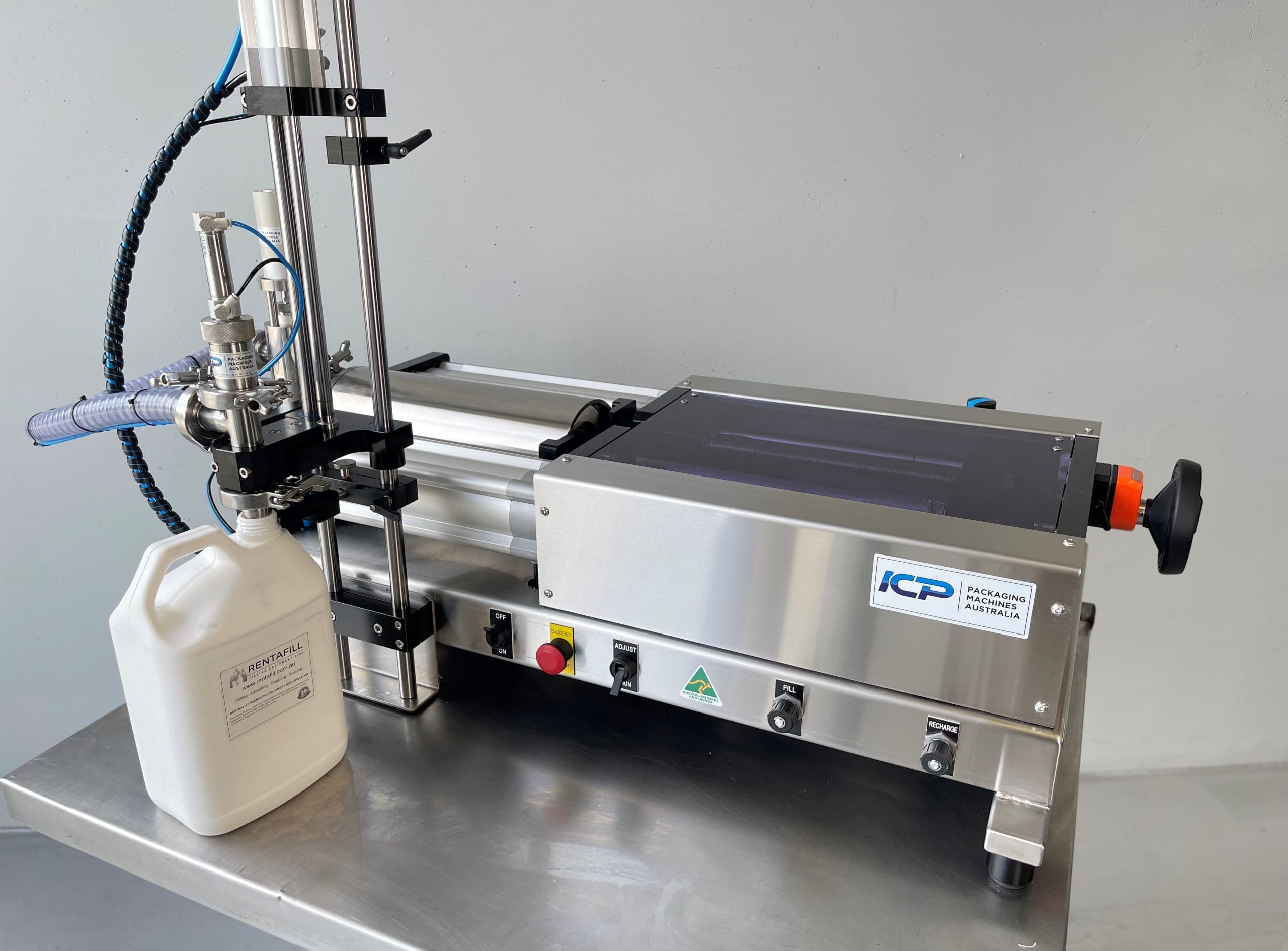

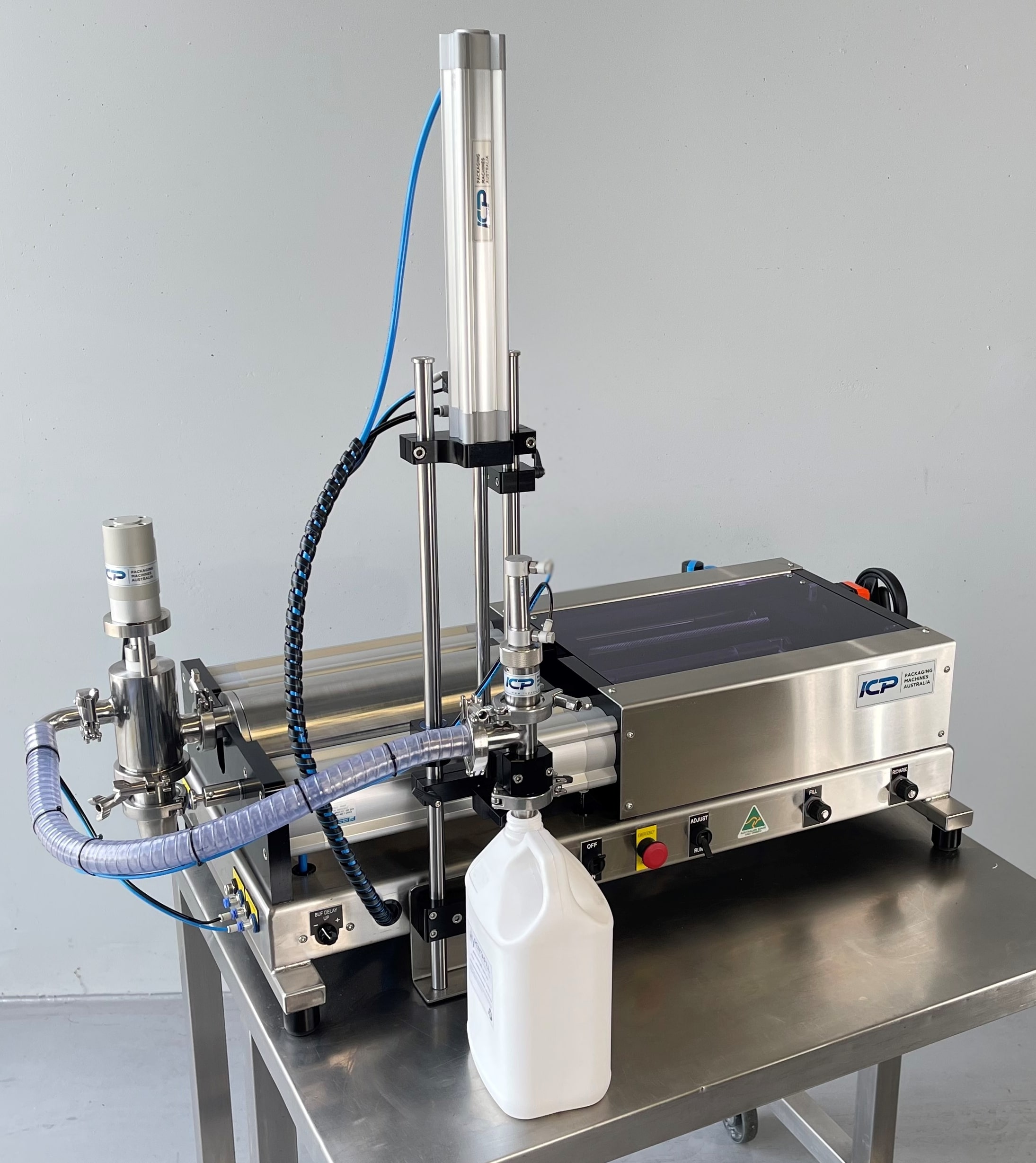

ICP-5 Heavey duty 5L benchtop liquid filler.

The ICP-5 is an over-engineered pneumatic volumetric filling machine, designed and built in Australia by ICP Packaging Machines Australia for long-lasting performance. Capable of filling any free-flowing product from 500 mL to 5 litres, this machine is ideal for bulk filling applications such as detergents, oils, liquid soaps, and products with malleable solids in suspension.

Built for durability, the ICP-5 is a heavy-duty benchtop machine that includes a spool valve for hot filling products up to 95°C. It can be fed directly from a storage tank, IBC, or other storage devices, offering flexibility for various production environments. The machine also features a millimetre-accurate digital counter, allowing users to recall previous settings without recalibration, ensuring consistent and precise filling every time.

The ICP-5 comes standard with a Bottom-Up Fill (BUF) attachment and a 25mm outward opening Positive Shut-Off (PSO) nozzle, but can be customized to meet specific requirements. Its robust design ensures reliable performance for many years, making it a valuable investment for any business in need of a high-capacity, dependable filling solution.

  • BUF (Bottom-up fill) assembly.
  • All 316 stainless and food grade contact parts.
  • Fast toolless removal of contact parts for cleaning.
  • Easy operation and volume adjustment by a mm accurate digital counter. Allows for precise return to previous fill volume without the need to re-calibrate.
  • Fully pneumatic operation – flameproof.
  • Suitable for warm water washdown.
  • High-quality pneumatics from SMC and Festo.
  • Fully adjustable fill and recharge speed valve controls.
  • Foot switch included for hands-free one-shot cycling.
  • Spool valve capable hot-filling products up to 95 deg C (i.e., hot sauces)
  • Dimensions w x d x h (mm) 1200 x 450 x 300 (inc handwheel) (Excluding BUF)
  • Weight Approx. 65kg.
  • Air Pressure Required (Kpa) 600 (87psi).
  • Fill range of 500ml – 5 litres.
  • Product piston fitted with O-ring energised Teflon/HDPE glide ring seal.
  • Quick connect tri-clover product inlet/outlet fittings.
  • Spool valve for use up to 95 Deg C.
  • Individually adjustable fill and recharge speed.
  • Fill accuracy ± 0.5% or better.
  • Pneumatic foot switch for hands-free operation.
  • Various inlet connections from 1″- 2″ inch.
  • Range of optional powered nozzles from positive shutoff (PSO) nozzle, plug & suck-back nozzle.
  • Stainless steel bench trolley.
